Quickcalc allows you to quickly calculate a Maximum Demand or Cable Calculation.
1. Go to MyPowerPac and sign in to your account.

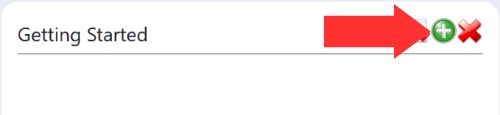

2. Click on the green plus on the job header. Name the calculation, select QuickCalc, then click OK.

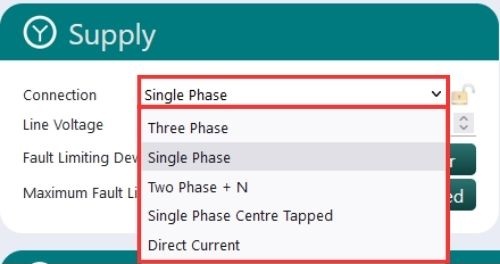

3. Select your connections type:
- Three Phase
- Single Phase
- Two Phase + N
- Single Phase Centre Tapped
- Direct Current

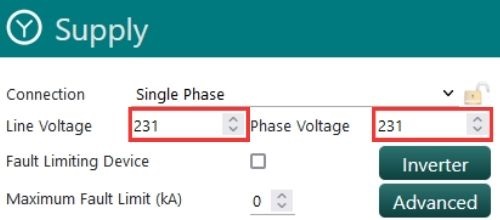

4. Enter the Line Voltage and Phase Voltage.

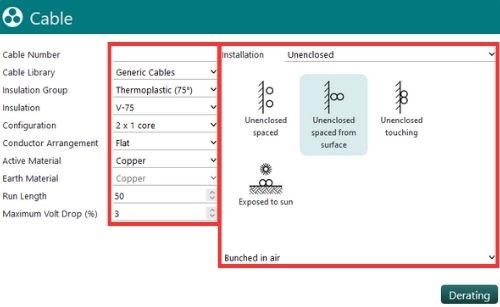

5. Enter the details of the Cable Run.

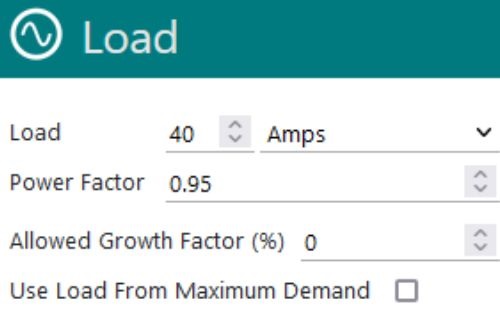

6. Enter the Load Details and select the Unit of Measurement you wish to use.

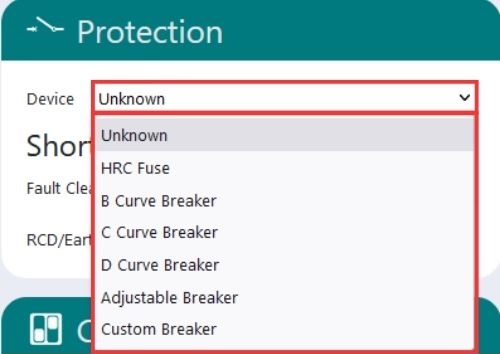

7. Enter either a Breaker or a Fuse followed by the relevant specifications.

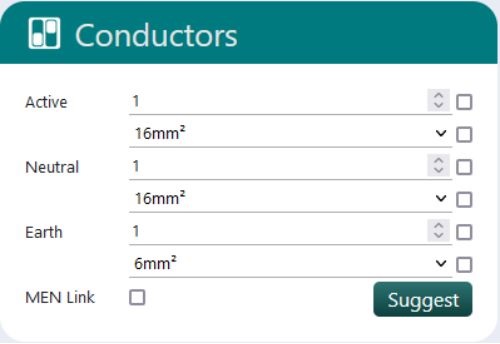

8. Enter the Conductor details.

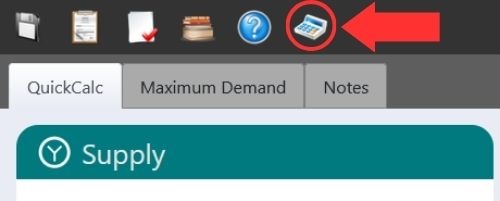

9. Use the Calculator Button in the toolbar at the top to re-calculate your results.
