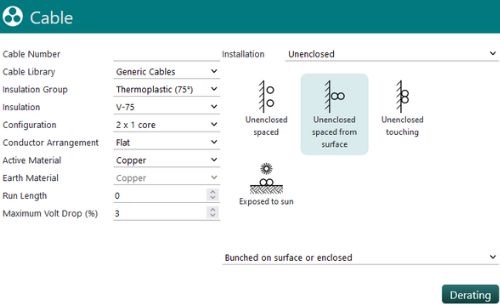

Cable Number - This is the reference number of the cable supplying the required load.
Cable Library - Choose to calculate based on Generic cables from the standards or Tricab Cable Library.
Insulation Group - Select the insulation type of the cables to be installed.
Configuration - Select the configuration of the conductors to be used for this cable run.
Conductor Arrangement - Select the configuration arrangement of the conductors to be used for this cable run.
Material - The material used for the conductors.
Run Length - Length of the this individual cable run in meters.
Maximum Volt Drop (%) - The maximum volt drop permitted on this individual cable run. This percentage is independent of any upstream or downstream voltage drop.
Installation - This is the method of installation to be used for this cable run.
